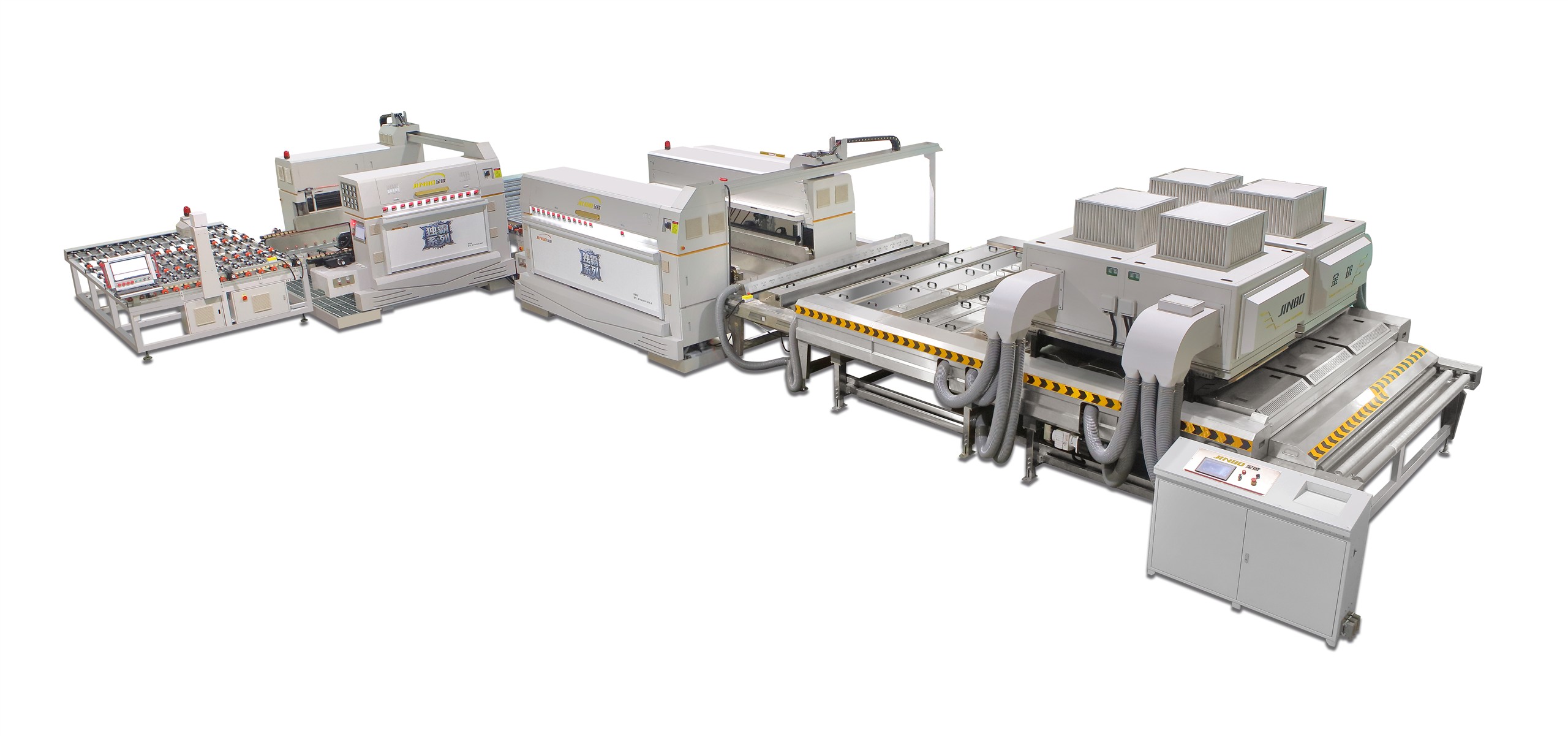

BYAA BUT Series (24–32 Wheels)
The BYAA BUT Series is a fully automatic, servo-fed, high-speed double edger line in an L-type layout. Loading, double edging, R-corner grinding, washing, and unloading run in one continuous line.
Process flow
-
Loading
Glass is fed onto the line at the entry end.
-
Double edging
Both edges are ground simultaneously, with the wheel sequence matched to your required edge finish.
-
R-corner grinding
The radius is ground while the panel is still clamped on the same datum as the edge.
-
Washing
The finished panel is washed and dried in line.
-
Unloading
Panels leave the line ready for tempering, IGU assembly, or packing.
Technical specification
| Item | Value |
|---|---|
| Series and layout | BYAA BUT Series, with fully automatic servo feeding and a high-speed L-type layout |
| Glass thickness | 3–25 mm |
| Panel range | Rectangular glass, stone slabs and similar panels |
| Maximum processing size | Up to 1,000 × 12,000 mm |
| Grinding wheel options | 24, 26, 28, 30 or 32 wheels |
| Standard 24-wheel line length | Approximately 3 m |
| Grinding speed | Up to 25 m/min |
| Width adjustment speed | Up to 20 m/min |
| Touch screen | 15-inch touch screen |
| R-corner radius | R3–R8 |
| R-corner function | Optional radius-corner cutting with polishing effect |
| Polishing configuration | One grinding position can take two wheels to add polishing capability |
| Workshop footprint | More than one-third less space than a conventional line |
| Parallel error | ±0.2 mm |
| Diagonal error | ±0.5 mm |
| Chamfer width error | ±0.2 mm |
| Delivery lead time | 75 days |
| Warranty | Limited to 12 months after installation; wear parts excluded |
| Project-specific data | Power, compressed air, weight and final layout are confirmed with the final configuration |
The figures above combine the BYAA BUT Series brochure with the current project specification. Final processing range and service terms are confirmed in the quotation and contract.
Options
Handling
Fully automatic servo feeding for the high-speed L-type line.
Grinding heads
Choose 24, 26, 28, 30 or 32 wheels for different production requirements.
Compact footprint
The standard 24-wheel line is approximately 3 m long and saves more than one-third of workshop space compared with a conventional line.
R-corner and polishing
Optional R3–R8 radius-corner cutting with polishing effect. Parallel error is ±0.2 mm, diagonal error ±0.5 mm and chamfer width error ±0.2 mm.
Frequently asked questions
How many grinding wheels can the line have?
The BYAA BUT Series is available with 24, 26, 28, 30 or 32 wheels.
How long is the standard line?
The standard 24-wheel model is approximately 3 m long. The final footprint depends on the selected configuration.
What glass and panel sizes can it process?
It is designed for 3–25 mm rectangular glass, stone slabs and similar panels, with a maximum processing size of up to 1,000 × 12,000 mm.
Can it grind and polish R-corners?
Yes. R3–R8 radius-corner cutting with polishing effect is available as an option. Parallel error is ±0.2 mm, diagonal error ±0.5 mm and chamfer width error ±0.2 mm.
What are the maximum speeds?
Grinding speed is up to 25 m/min and width adjustment speed is up to 20 m/min.
What are the delivery lead time and warranty terms?
The current project target is 75 days for delivery. Warranty is limited to 12 months after installation; wear parts are excluded.
What are the installation terms?
Installation is not included. The buyer covers the visa, round-trip international air travel, insurance, transportation, and accommodation at the installation site. We do not charge labour for the first 20 days. If buyer-caused delays extend the installation beyond 20 days, we charge USD 150 per day from day 21 until installation is complete.
Request a quote for this line
Send us your panel sizes, glass thickness, required output, and whether you need R-corners. We will recommend a configuration and send you a price.
